Customisations

Randex design Compact Vertical storage lift solutions for our customers depending on their requirements. This means that we have full control and can customise the vertical storage lift according to the customer’s requirements and the goods to be stored. Naturally we strive to use standard measurements. If our customers require special dimensions and unique features, we will solve it!

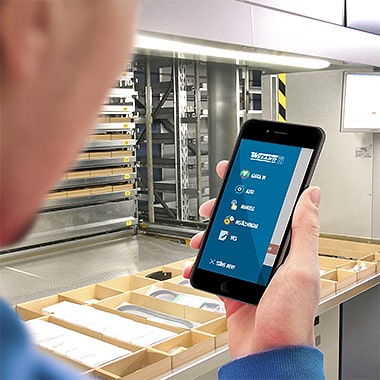

Mobile control

Mobile control

Compact vertical storage lifts can be controlled via mobile devices, with a personalised interface for the operator, instead of via a computer. The person at the warehouse starts the order directly from his or her mobile phone or tablet computer and only sees his/her order on the screen.

This saves a great deal of time and walking along aisles, while the risk for making picking mistakes is reduced. This new and modern way of working improves the work situation and the efficiency of the storage management for each employee.

The system supports all the processes that are included in normal storage management. All of this is now available on a mobile phone or tablet computer.

Customized tyre storage

Customized tyre storage

The storage means that the tyres are stored in a Compact Double vertical storage lift, which saves time and reduces staff costs.

With several Compact Lifts next to each other it is easy to store up to 150,000 tyres. Each vertical storage lift is customized to the wholesaler's time bookings. With many time bookings at the same time, we can put several lifts next to each other. In this way, several people can pick tyres from the service openings at the same time.

With the tyres stored in a Compact Double the picking speed becomes 2-4 times faster than in a traditional storage. With this tyre storage it is easier to pick out the right tyre, as the staff does not need to search among the shelves after the tyres. Staff costs are also reduced as fewer people are needed in the storage.

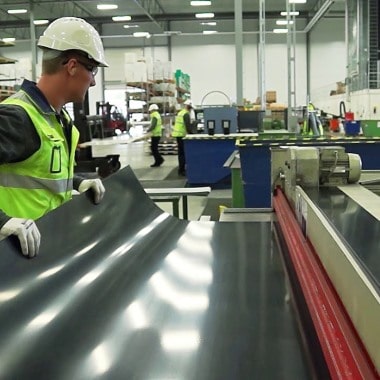

1.5 metric tonnes

1.5 metric tonnes – on one load tray!

When it comes to storing heavy components with the efficiency provided by a vertical storage lift, the Compact Heavy solution has been developed to handle a load of 1.5 metric tonnes; the heaviest capacity in its class!

This is one part of our efforts to develop solutions that allow a greater and greater part of industrial companies' stock-holding to be managed using vertical storage lifts.

The Compact Lift, with load trays suitable for loads up to 1.5 metric tonnes, makes it possible to increase the efficiency further and save valuable floor space for stock handling.

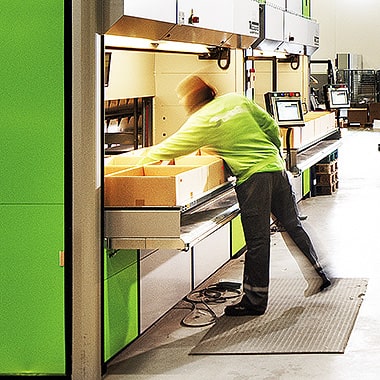

Pull-out

Pull-out

Pull-out, to make accessibility during pick management easier. Short Pull-Out, 40 cm (standard for service openings on Compact Twin), makes picking smaller articles easier. 100% Pull-Out, 80 cm, used for larger and heavier articles that require lifting equipment.

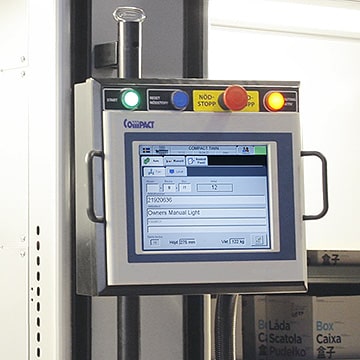

Login via magnetic card, RFID and Fingerprint

Login (magnetic card, RFID, Fingerprint)

To increase security and eliminate the risk of theft, a user register can be uploaded to the vertical storage lift with authorisations for groups and individual users. As an individual user, it is only possible to access the load trays to which one has authorisation. This gives exact traceability of all activities in the vertical storage lift.

The login is easy, quick and secure with magnetic card, RFID or Fingerprint.

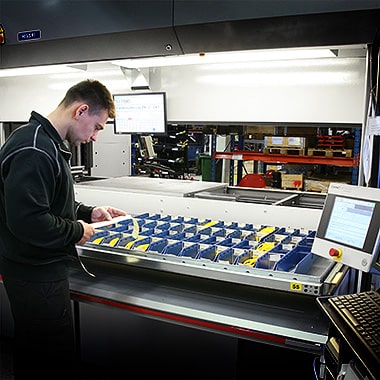

Extra access openings

Extra access openings

Extra access openings, for flexible applications. An extra service opening can make it possible to work with picking on several floors.

Another application is when access is required to one vertical storage lift from two directions, with loading on one side and picking on the other.

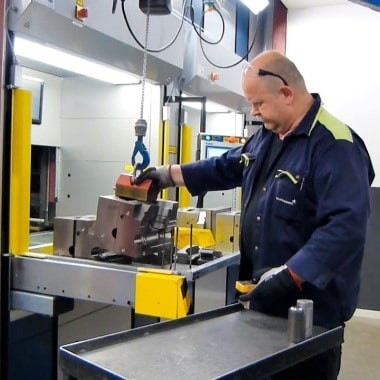

Weighing Machine

Weighing-machine – exact weight on the load tray

As standard, Randex Compact Lifts include a weight management system which will return a tray to the opening if the tray has been overloaded, for our standard tray weights of 300kg, 500kg or 700kg this ensures trays are not damaged due to overloading.

If however you require a more accurate weight management system, potentially linked to a stock control system, Randex can provided our weight management solution. This uses load cells to determine the weight of the goods on the tray and is accurate within 1kg.

The weighing system gives the exact weight on the load tray when it is in the service opening. The weight appears directly on the vertical storage lift's display and gives the exact weight before and after picking or loading on to the load tray.

The weighing system has measurement points in all of the tray corners and, for this reason, gives the exact weight on the load tray, wherever the goods are placed.

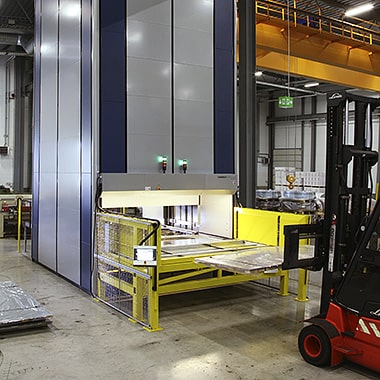

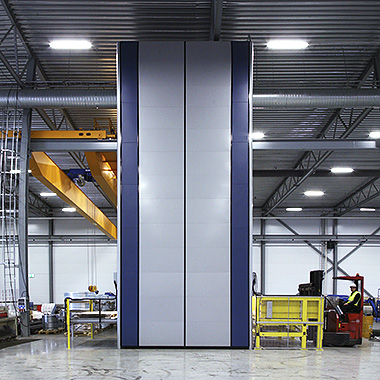

Safe Pallet Handling

Safe Pallet Handling

When load pallets are being placed on the vertical storage lift's load trays, it is important that the lift be equipped correctly in order for the pallet handling to run smoothly and safely. Compact lift with pallet handling provide the truck operator with a secure and safe system of work. The equipment makes loading and unloading of pallets easier and prevents risks of harm occurring during work.

With the stable and robust equipment for pallet handling, all loading and unloading takes place outside the vertical storage lift. A safety curtain ensures that the truck operator does not approach the work area before the vertical storage lift's load tray is secured in the correct position on the pallet handling system, with support from underneath.

Stable guide guards make it easy for the truck operator to drive forward with the load pallet in the correct position. The measurement curtains at the side signal the position of the load pallet in depth, providing a clear ‘traffic light indication’ so the truck operator can easily see when the pallet can be lowered and placed correctly on the load tray.

The equipment is reinforced with collision protection and a strong beam that protects the load tray when the truck's forks are lowered on to the load tray. Compact Storage Lifts are available with equipment for pallet handling at one or two load openings, everything based on your needs. With this solution, the stock handling is efficient, while the truck operators gain a secure and safe work environment.
